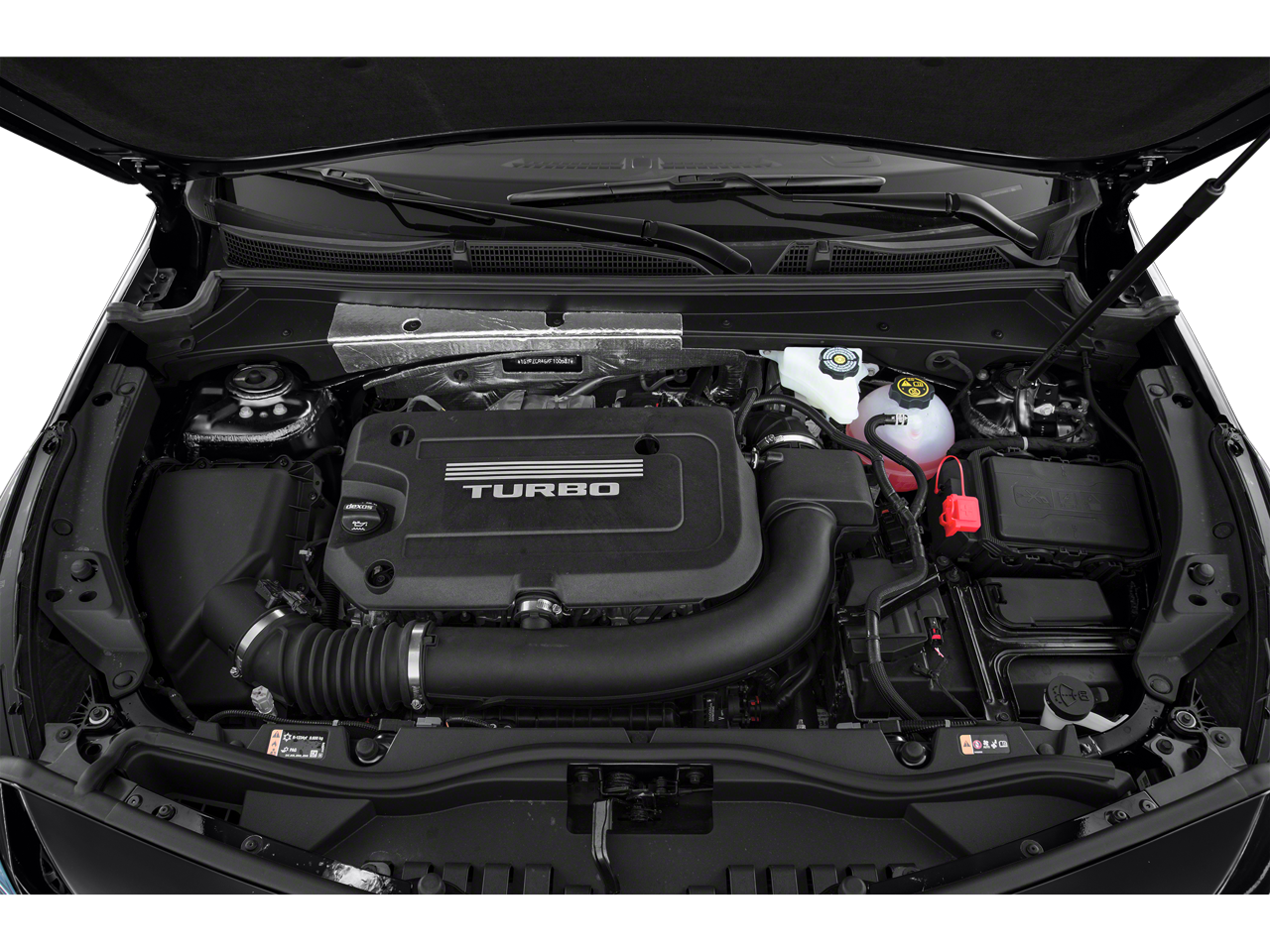

ENGINE, 2.0L TURBO, 4-CYLINDER, SIDI

• (235 hp [175 kW] @ 5000 rpm
• 258 lb-ft of torque [350 N-m] @ 1500-4000 rpm) (STD)

• Vehicle
• EPA Classification: Small Sport Utility Vehicle
• Number of Passenger Doors: 4
• Mileage
• Fuel Economy Est-Combined (MPG): 26
• EPA Fuel Economy Est - City (MPG): 24
• EPA Fuel Economy Est - Hwy (MPG): 30
• Electrical
• Cold Cranking Amps @ 0° F (Primary): - TBD -
• Maximum Alternator Capacity (amps): - TBD -
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Base Curb Weight (lbs): 3660
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 2500
• Dead Weight Hitch - Max Tongue Wt. (lbs): 250
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 2500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 250
• Maximum Trailering Capacity (lbs): 3500
• Suspension
• Suspension Type - Front: MacPherson Strut
• Suspension Type - Rear: Multi-Link
• Suspension Type - Rear (Cont.): w/Coil Springs
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): - TBD -
• Stabilizer Bar Diameter - Rear (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): - TBD -
• Rear Brake Rotor Diam x Thickness (in): - TBD -
• Tires
• Front Tire Order Code: XD7
• Rear Tire Order Code: XD7
• Front Tire Size: P235/60R18
• Rear Tire Size: P235/60R18
• Wheels
• Front Wheel Size (in): 18 x - TBD -
• Rear Wheel Size (in): 18 x - TBD -
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum

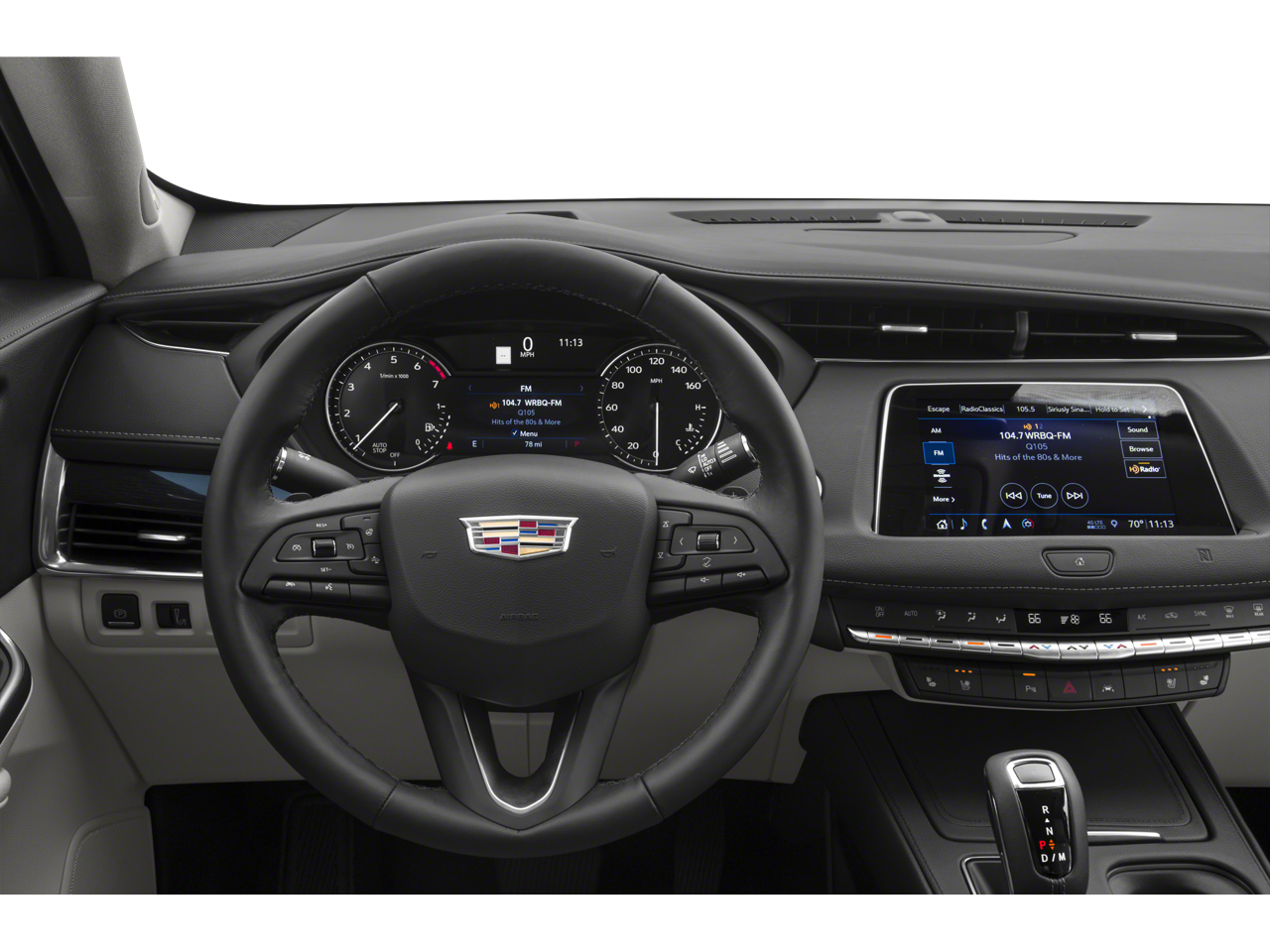

• Steering
• Steering Type: Electric Rack & Pinion
• Steering Ratio (:1), Overall: Variable
• Lock to Lock Turns (Steering): - TBD -
• Turning Diameter - Curb to Curb (ft): 38
• Turning Diameter - Wall to Wall (ft): - TBD -
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 15.9
• Exterior Dimensions
• Wheelbase (in): 109.4
• Length, Overall (in): 181.1
• Width, Max w/o mirrors (in): 76.7
• Height, Overall (in): 63.21
• Track Width, Front (in): 63.2
• Track Width, Rear (in): 63.1
• Overhang, Rear w/bumper (in): 34.1
• Min Ground Clearance (in): 6.7
• Rear Door Opening Height (in): - TBD -
• Rear Door Opening Width (in): - TBD -
• Liftover Height (in): - TBD -

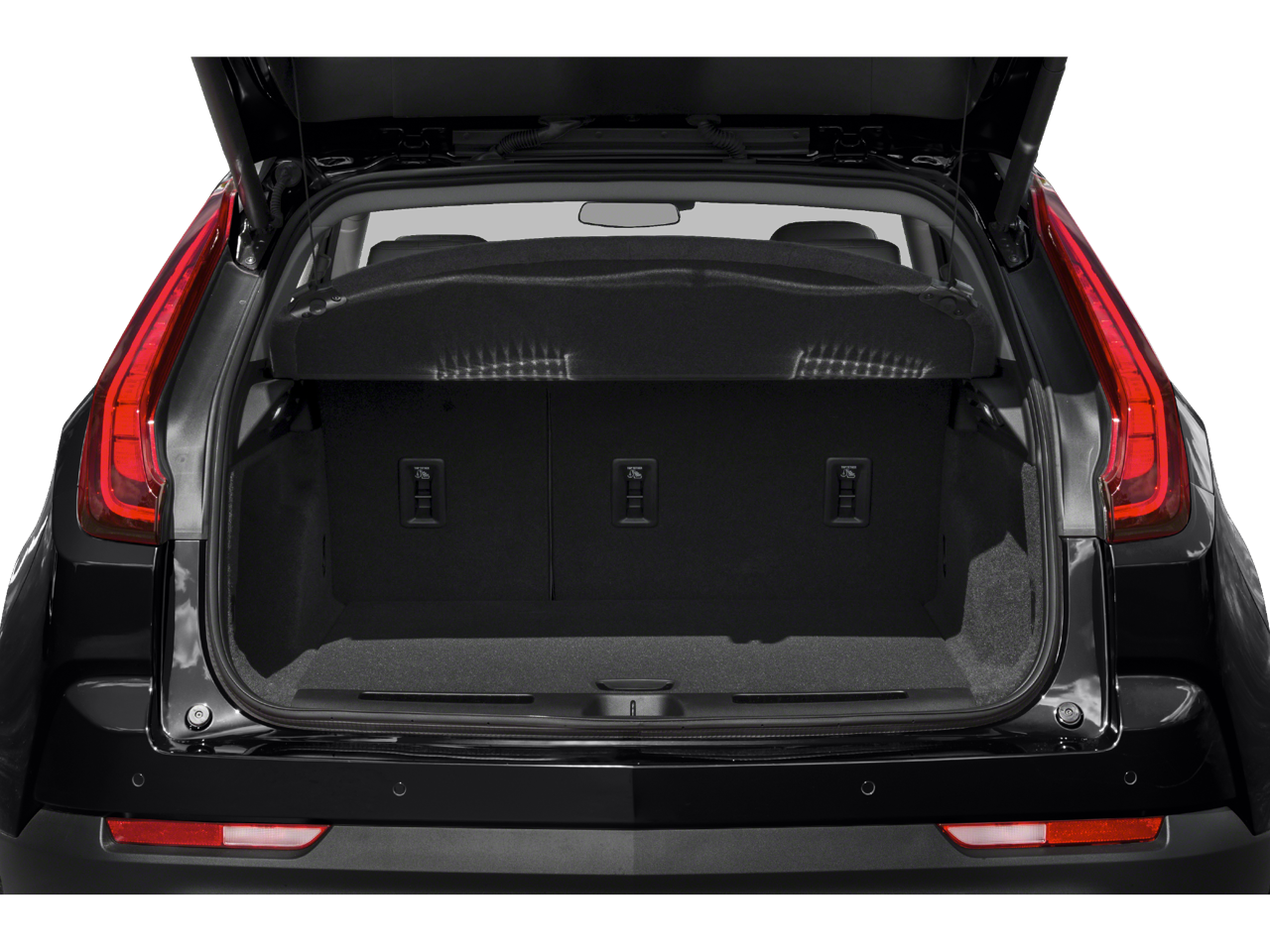

• Cargo Area Dimensions
• Cargo Area Length @ Floor to Seat 1 (in): - TBD -
• Cargo Area Length @ Floor to Seat 2 (in): - TBD -
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): - TBD -
• Cargo Box (Area) Height (in): - TBD -
• Cargo Volume to Seat 1 (ft³): 48.9
• Cargo Volume to Seat 2 (ft³): 22.5

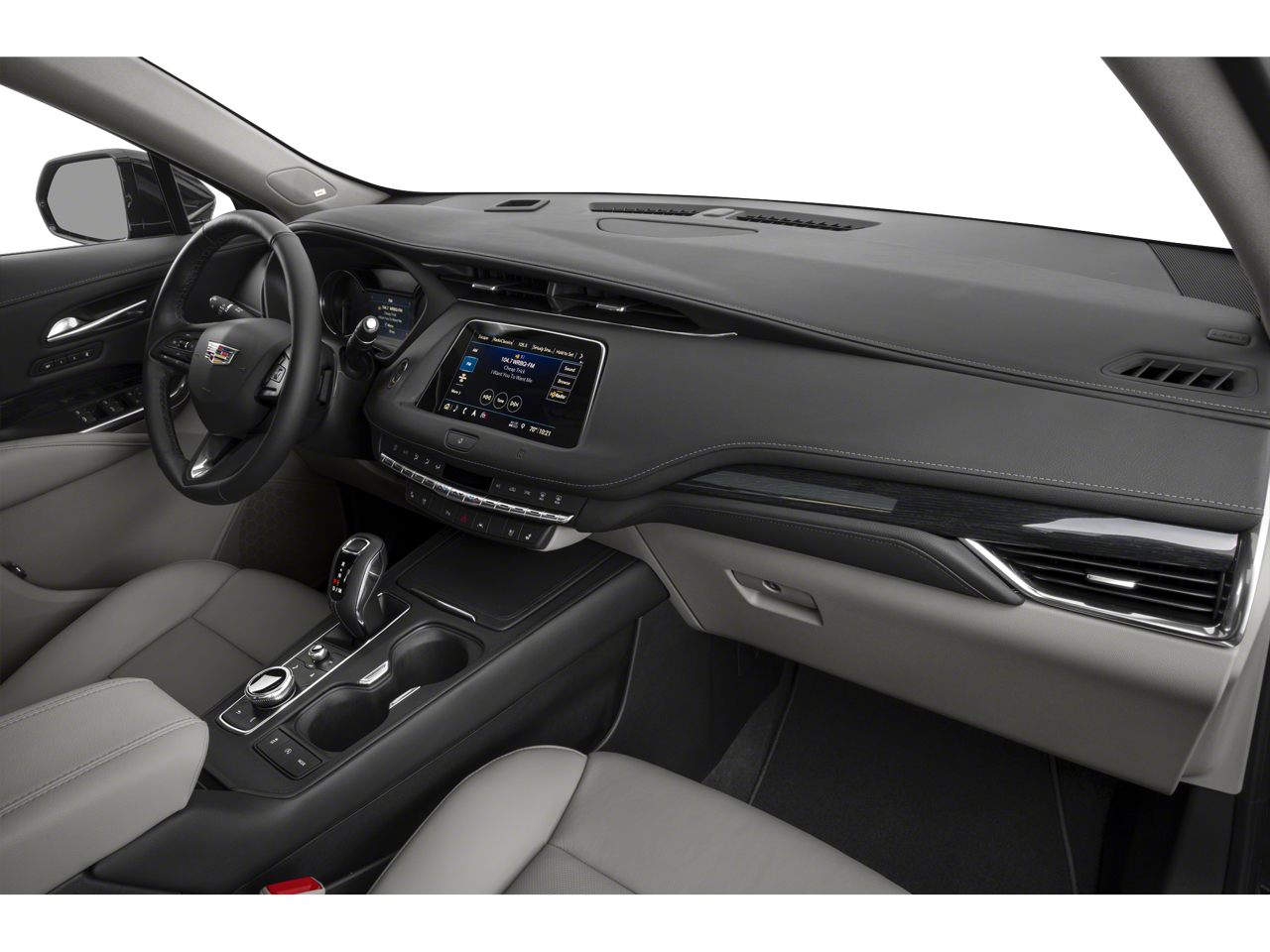

• Interior Dimensions
• Passenger Capacity: 5
• Passenger Volume (ft³): 100.6
• Front Head Room (in): 39.4
• Front Leg Room (in): 40.4
• Front Shoulder Room (in): 57
• Front Hip Room (in): 54.5

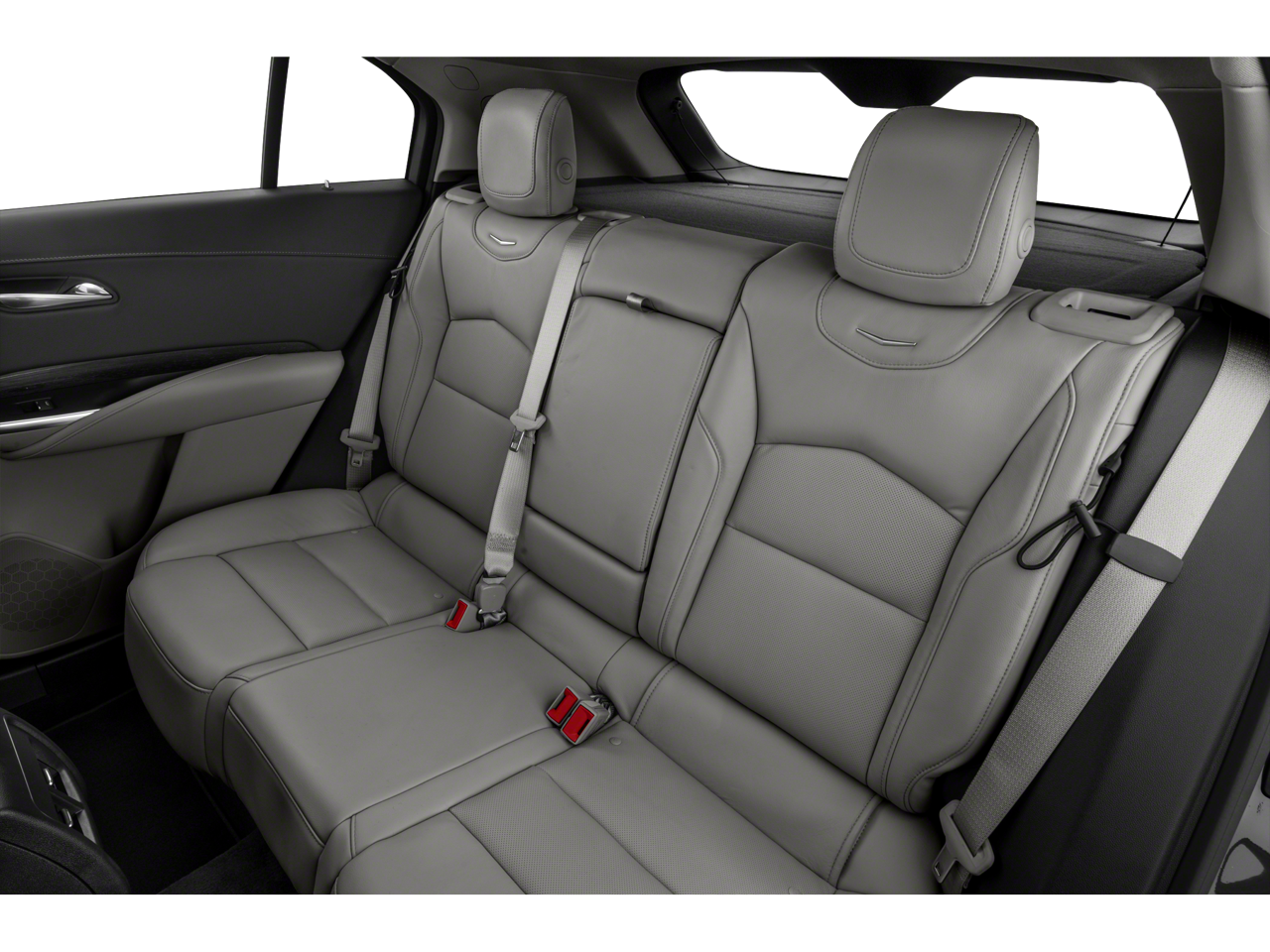

• Second Head Room (in): 38.3
• Second Leg Room (in): 39.5
• Second Shoulder Room (in): 55.1
• Second Hip Room (in): 49.8
• Summary

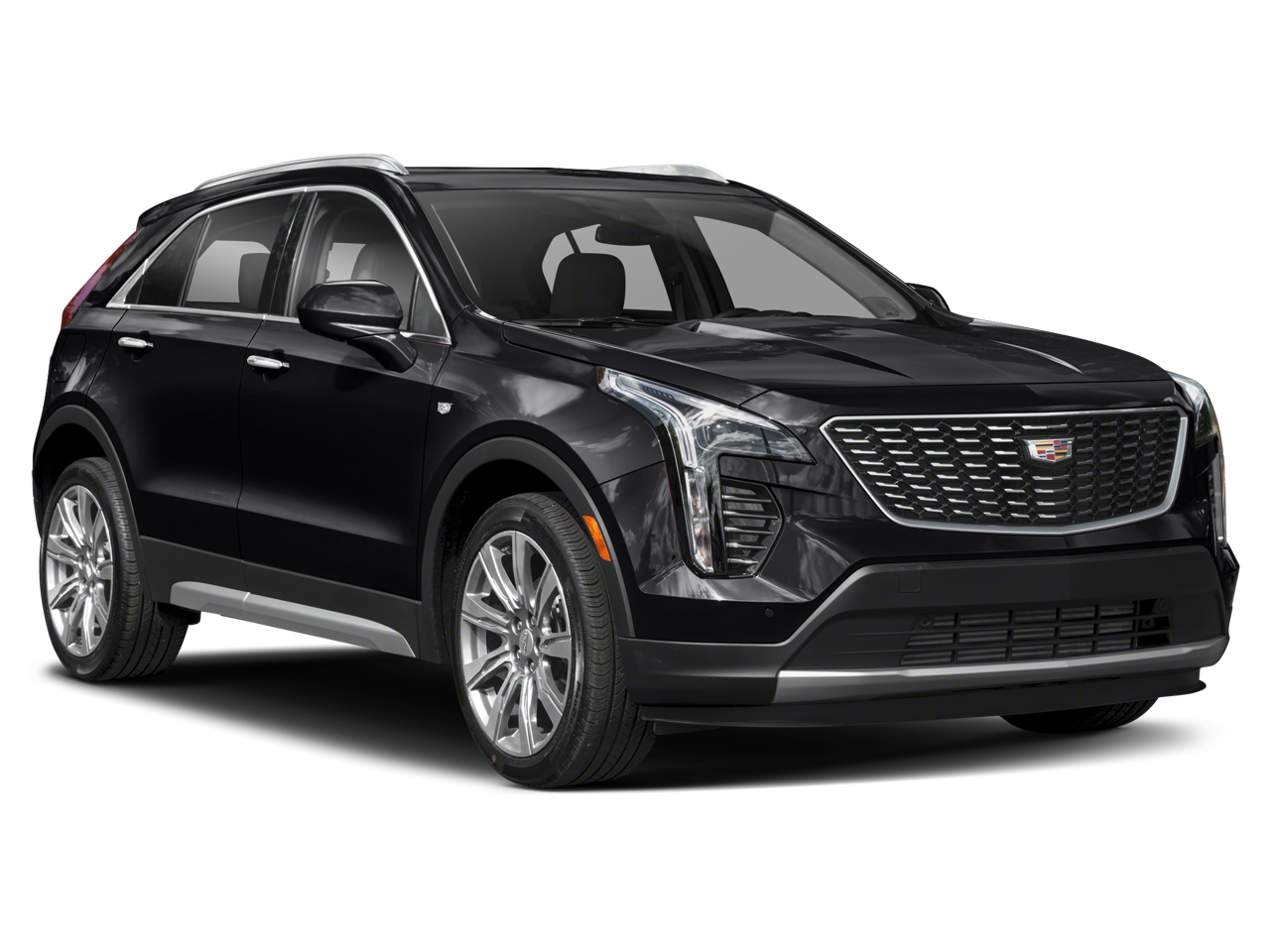

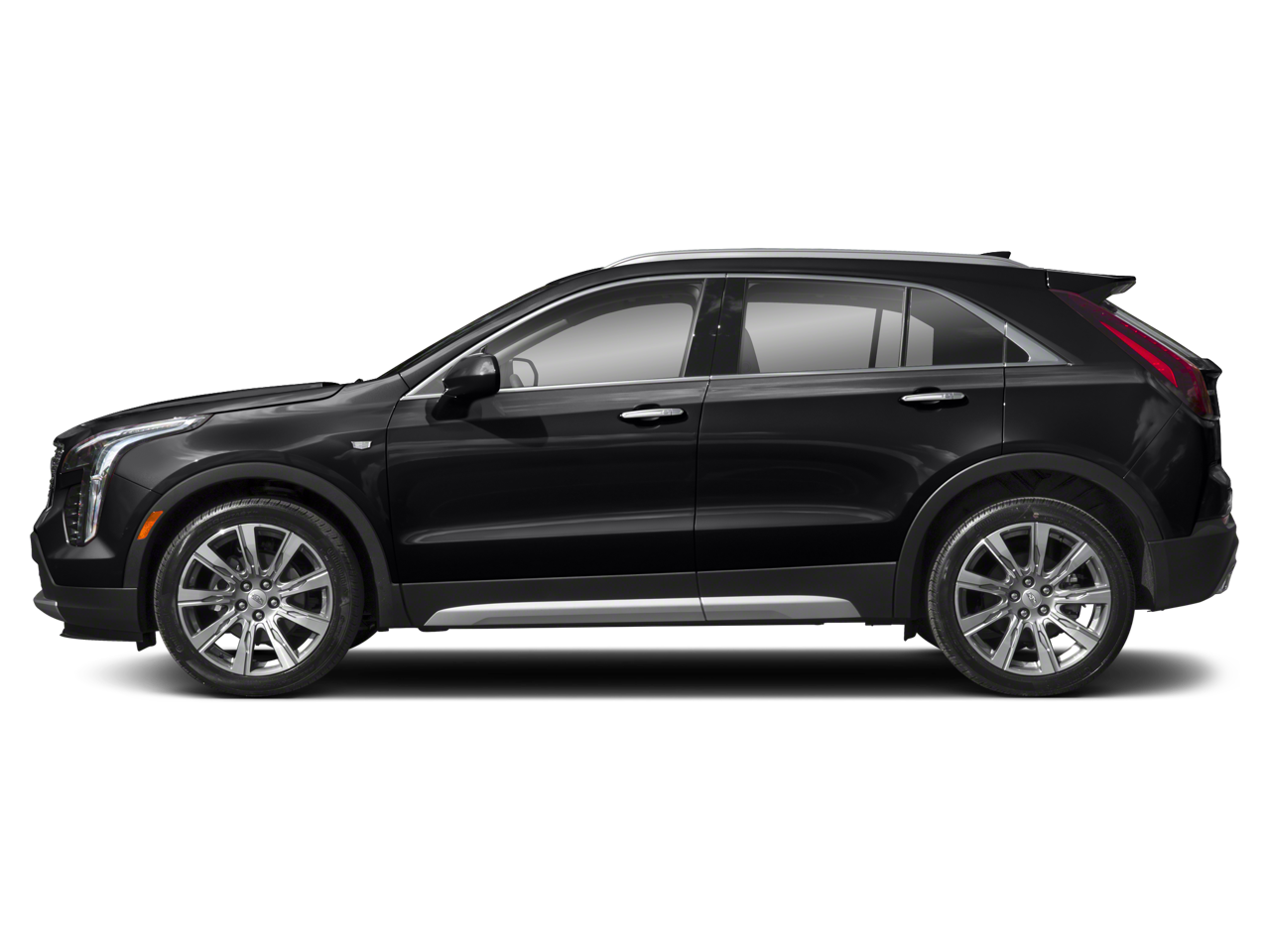

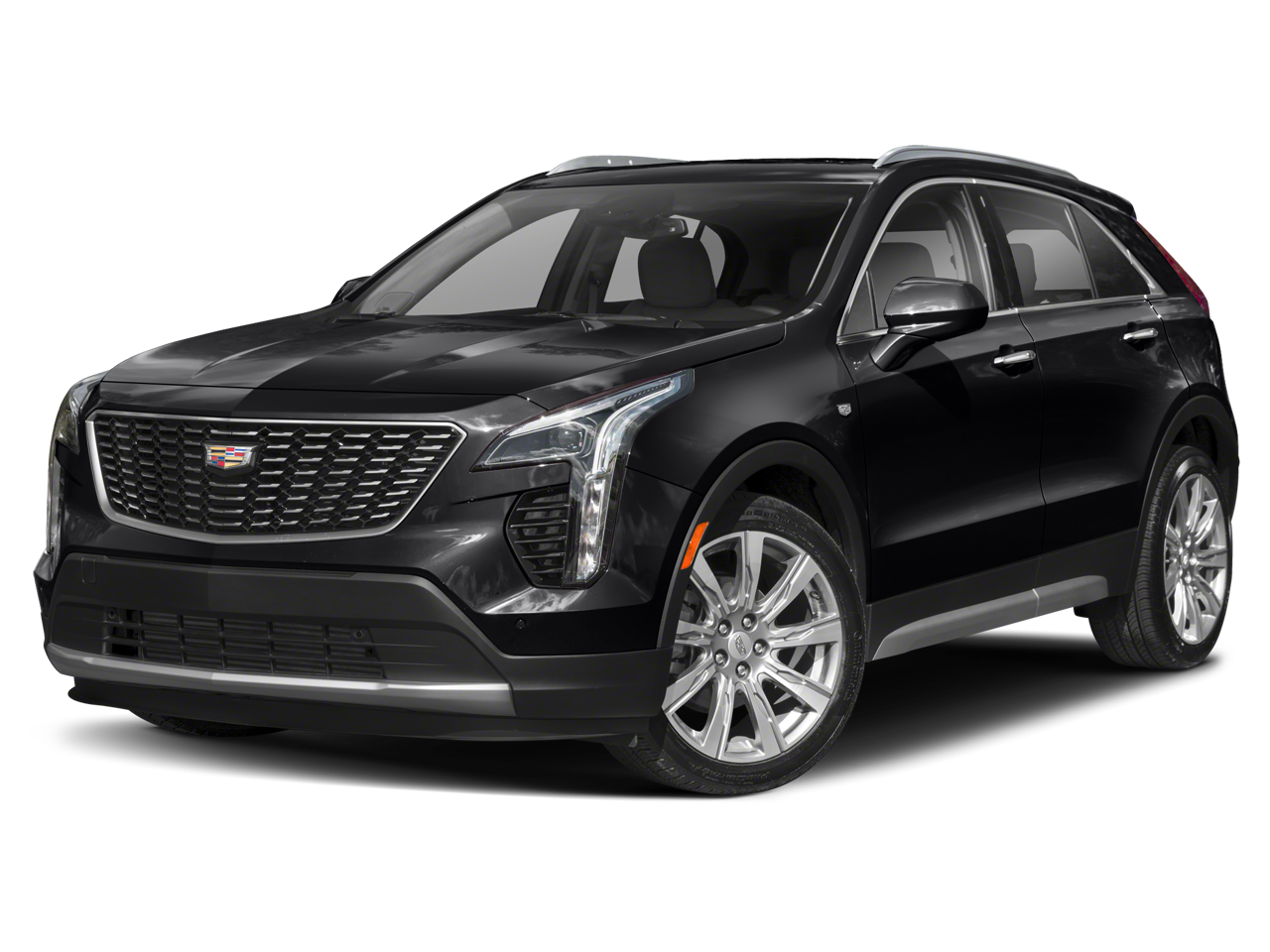

• Vehicle Name: Cadillac XT4
• Body Style: Sport Utility Vehicle
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: 6.8
